# Azure Repo

1. Log in to DevDynamics ([devdynamics.ai](https://devdynamics.ai/))\\

   <figure><img src="https://lh5.googleusercontent.com/6w20F89Of7kNQXM6X2te6Ne87CgxGwcWKX2OJCxQJ2Hc-lFRExGjvDjsj33cefVpaR8_uT0eqPvn8ZgeuKMOVDWSekWo-VCwWo43R1RiO8_-qgZh_Lv2kjZCvfBy7fk66sPJxnYXwZL1bD03yDY3wtg" alt=""><figcaption></figcaption></figure>

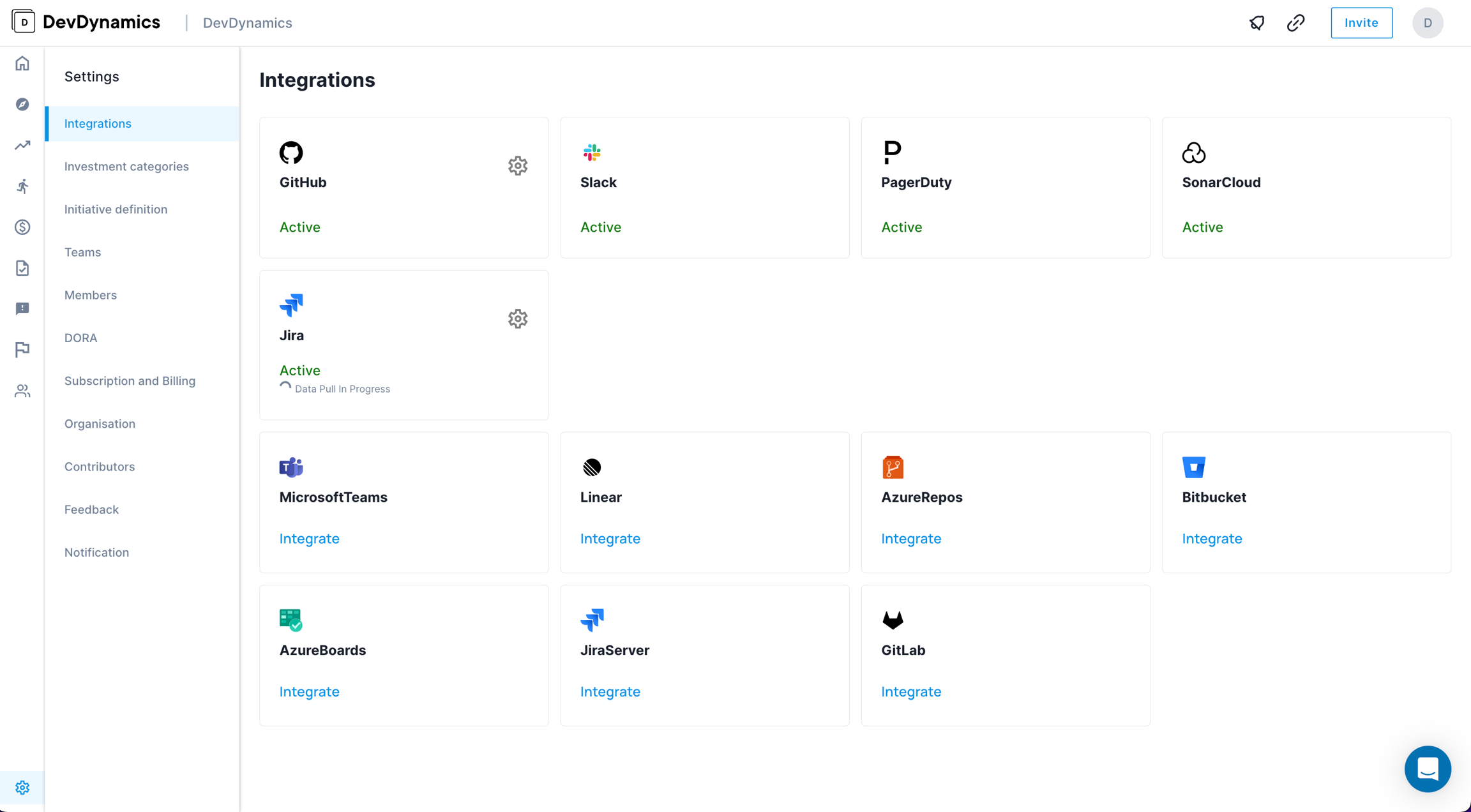

2. Go to Settings --> Integrations.\\

   <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fgit-blob-59fd887b9ff46afbe4916c5078cf9c0e7bf779dc%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

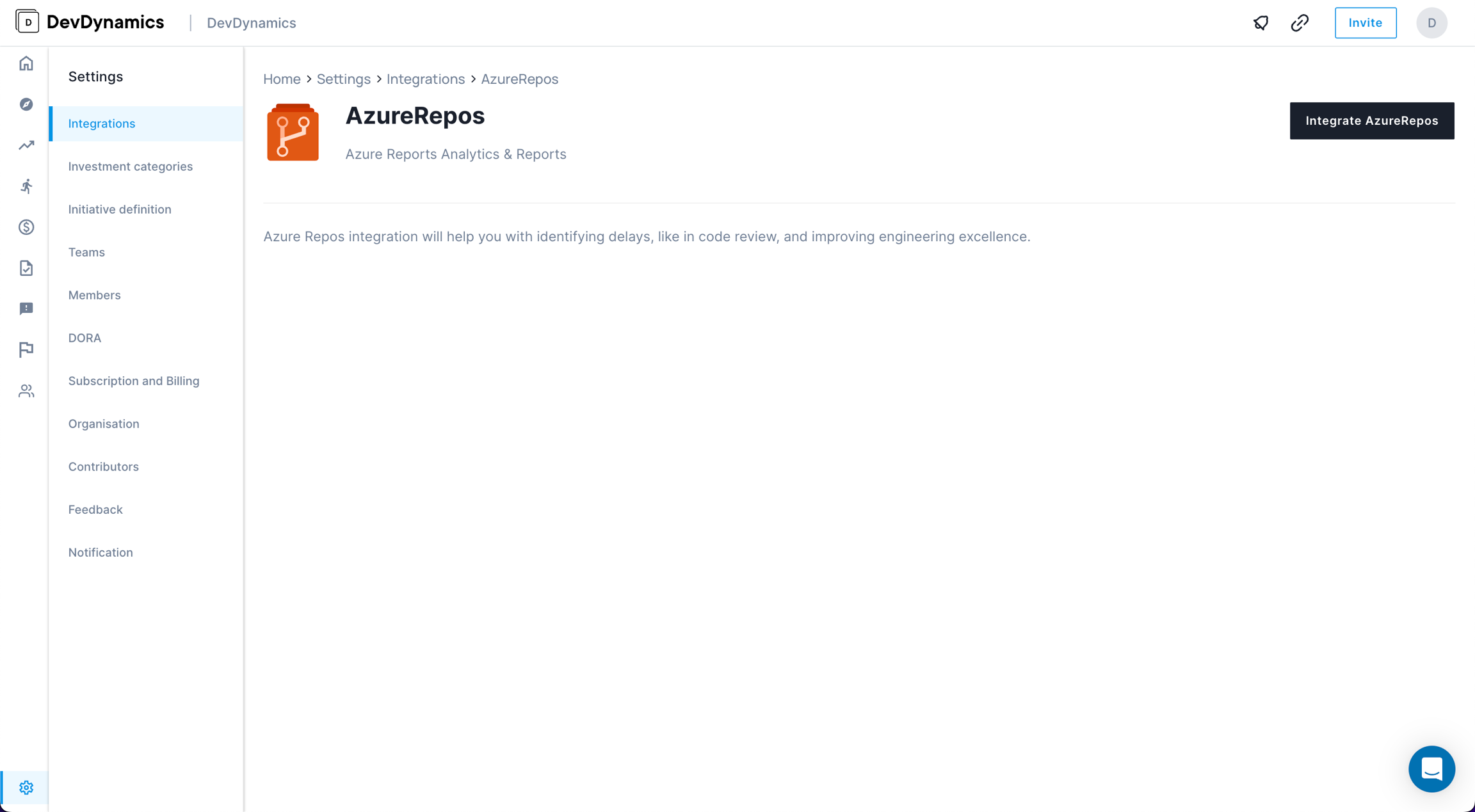

3. Click on Integrate under Azure Repo\\

   <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fgit-blob-e9a4ce8bed0f2886abf30eb6c0aaf5759fb967d5%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

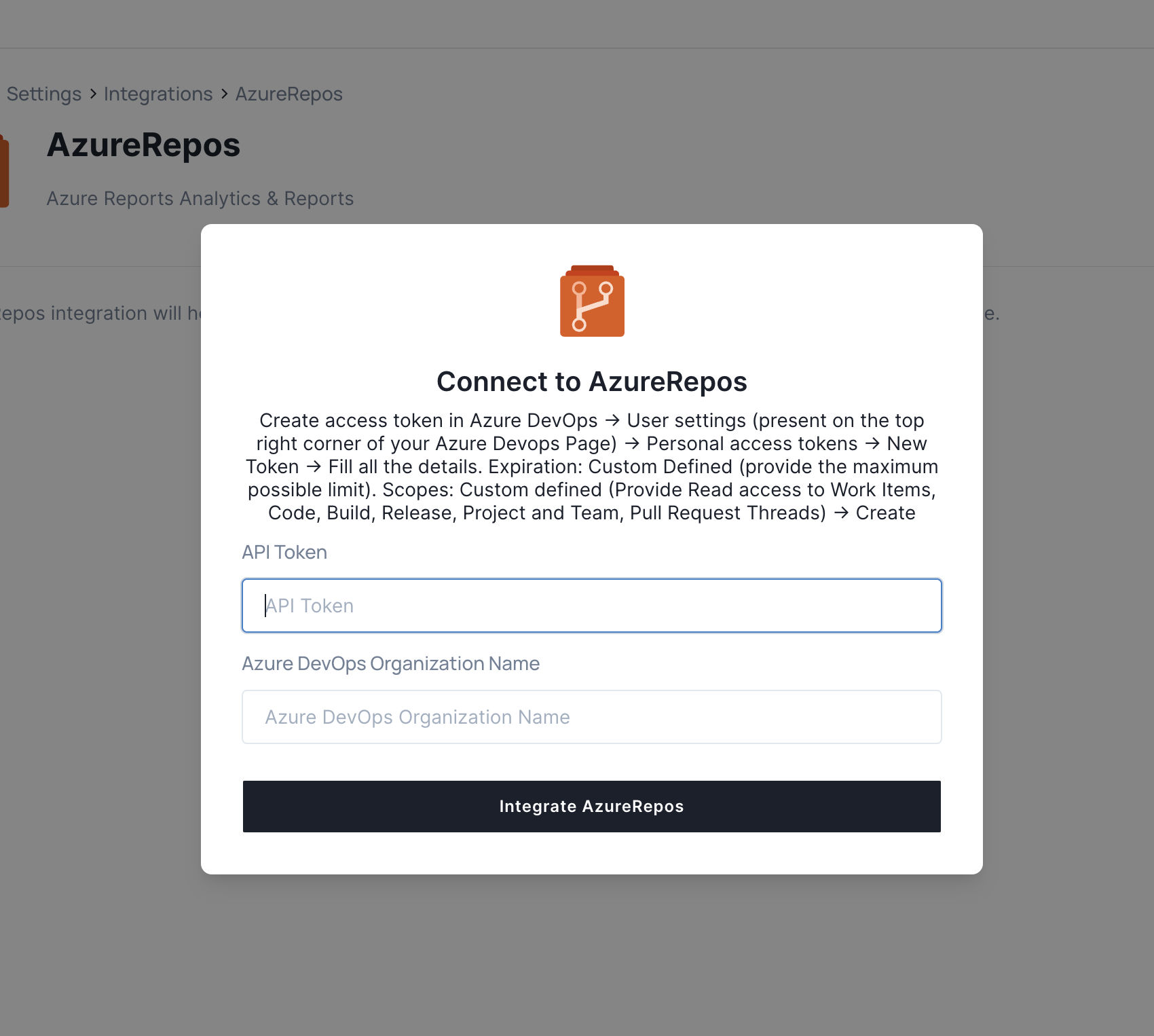

4. Click on Integrate Azure Repo, enter the API token and the Organization name\\

   <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fgit-blob-26ce09048d3886f47a4e179f07197b4142f69c2b%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

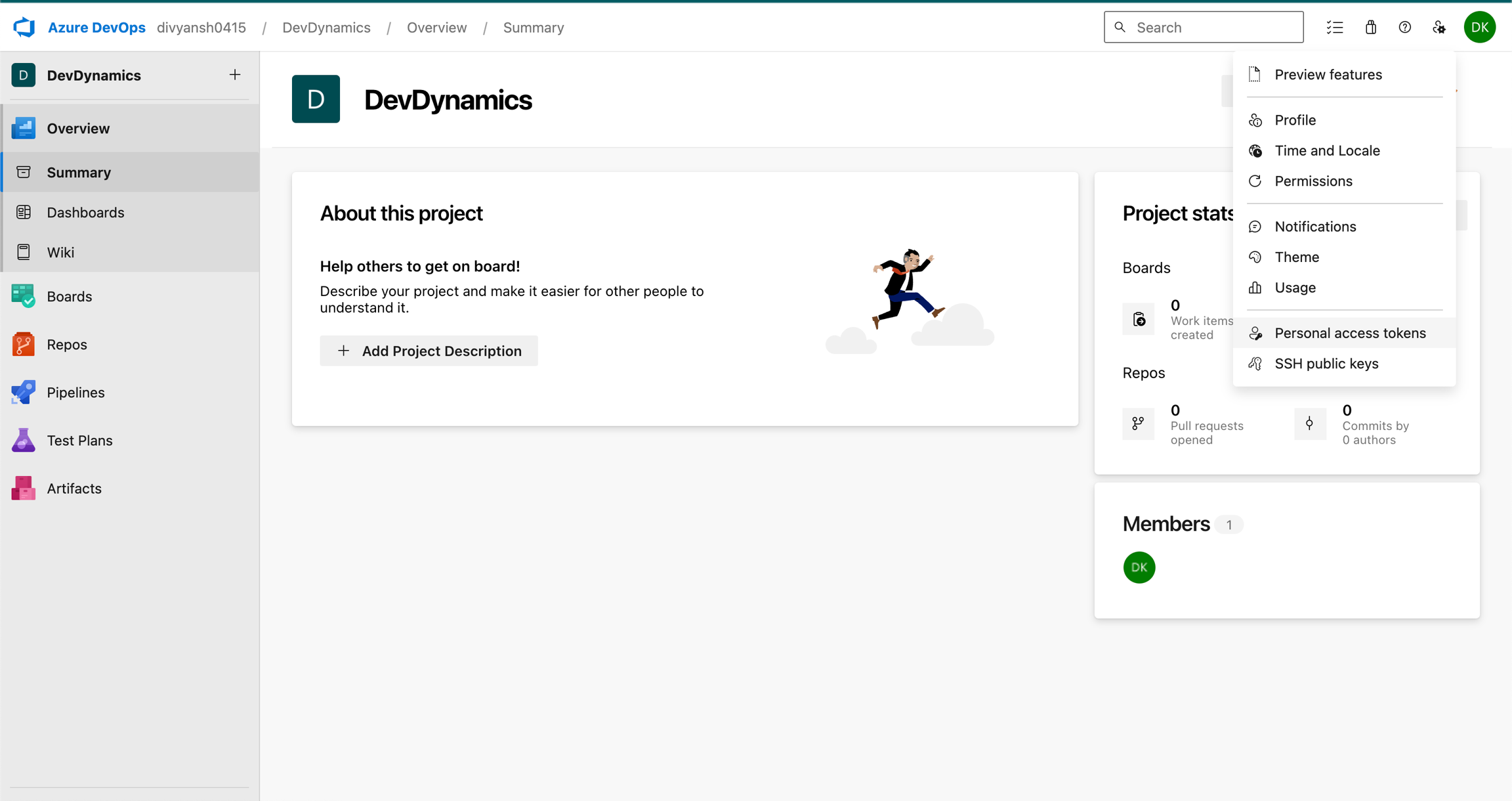

5. Go to the Azure portal and go to user settings. Click **Personal Access Token**\\

   <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fgit-blob-16f1382172fd7c2113d2e3fcf7749b1bfafbcb66%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

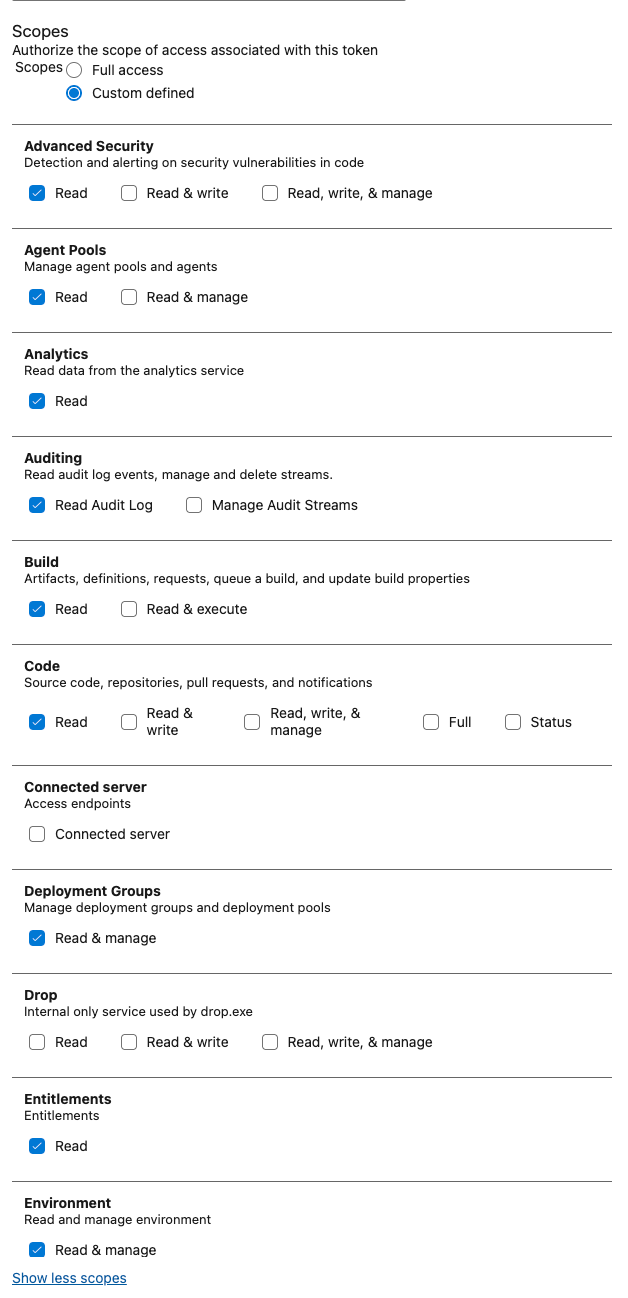

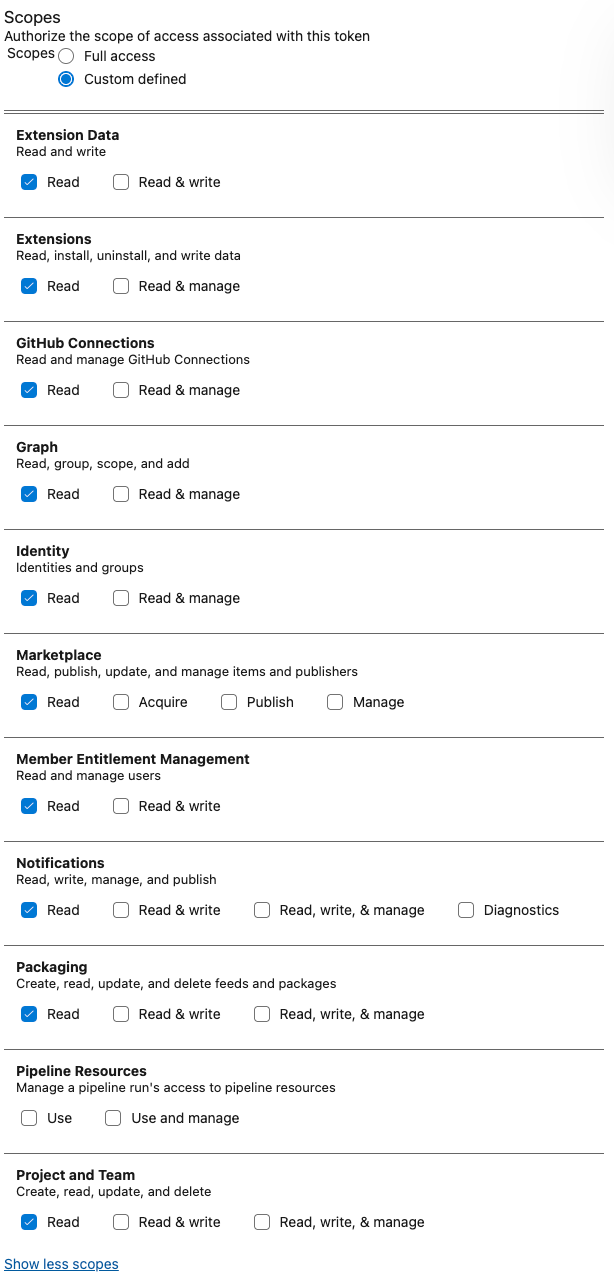

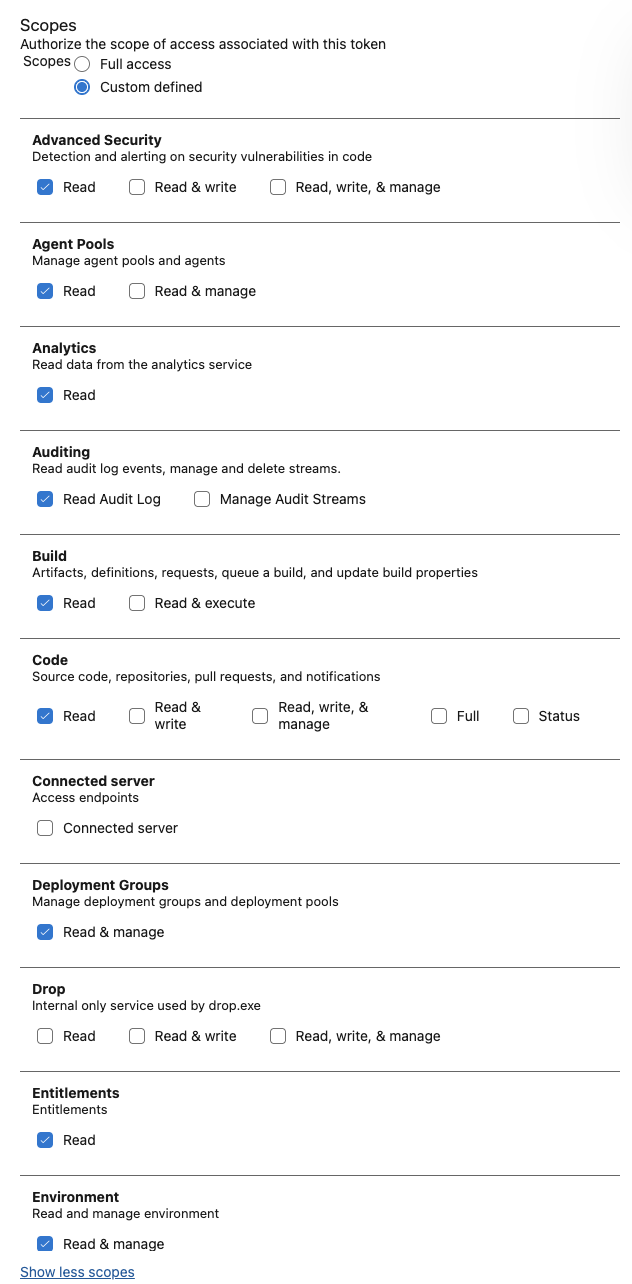

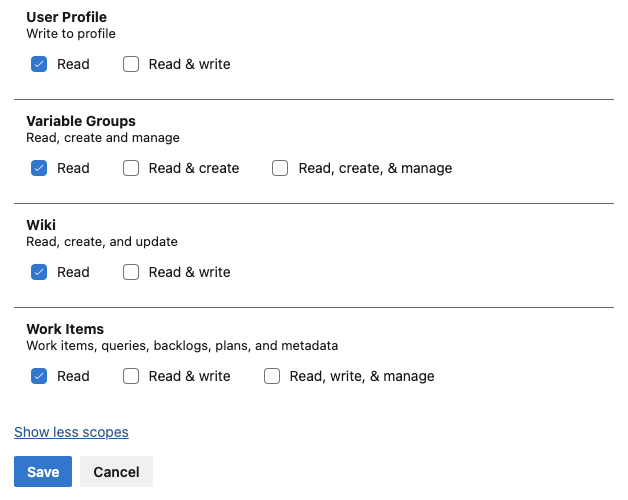

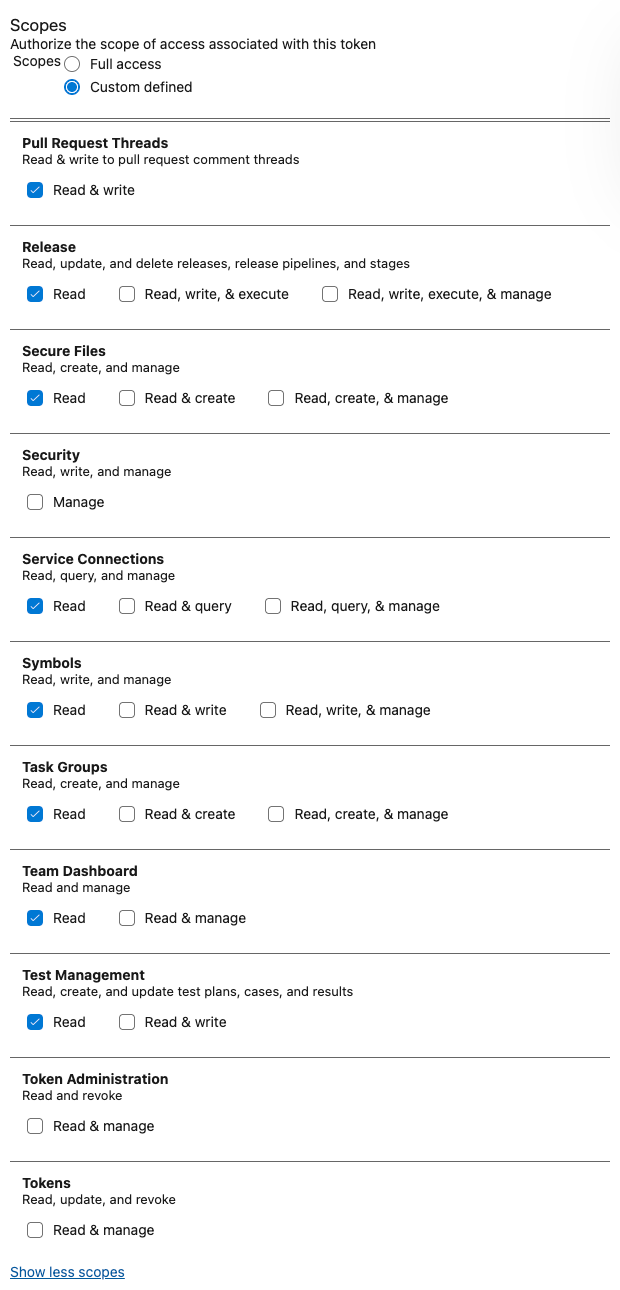

6. Create a new Personal Access Token. Add read permissions to the token for **Work Items, Code, Build, Release, Project and Team, Pull Request Threads, Release, User Profile .**  If you want us to analyze [code work breakdown](https://docs.devdynamics.ai/features/metrics/git-dashboard/work-breakdown-distribution-of-work-lines-of-code) please provide the full access instead of custom defined.

<div><figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2F0dPQXK1xVaKkkLaVAy6e%2FScreenshot%202025-03-26%20at%2012.56.03%E2%80%AFPM.png?alt=media&#x26;token=63c5724c-b5c7-49d7-8c36-fbabbf390114" alt=""><figcaption></figcaption></figure> <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fi87Fganjr7ihwZUn5jeF%2FScreenshot%202025-03-26%20at%2012.55.45%E2%80%AFPM.png?alt=media&#x26;token=a87428d0-a405-42e7-b5f2-6be44d3812f9" alt=""><figcaption></figcaption></figure> <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2FuD9LMwNHr5Yh3N7EVQx7%2FScreenshot%202025-03-26%20at%2012.55.24%E2%80%AFPM.png?alt=media&#x26;token=59744782-66c6-45a8-885e-e018219e1d66" alt=""><figcaption></figcaption></figure> <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2FpUYqwOioec8XRqh2Rsmk%2FScreenshot%202025-03-26%20at%2012.45.21%E2%80%AFPM%201.png?alt=media&#x26;token=70523e9e-db70-4878-a245-19cea8689948" alt=""><figcaption></figcaption></figure> <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2F8q25o3eX2oMjr1LMBpTq%2FScreenshot%202025-03-26%20at%2012.45.21%E2%80%AFPM.png?alt=media&#x26;token=1a4f842a-c5ef-4e35-80cc-848eba9f21ab" alt=""><figcaption></figcaption></figure> <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fg3ZbVkLNaW0OBfywBkQt%2FScreenshot%202025-03-26%20at%201.03.21%E2%80%AFPM.png?alt=media&#x26;token=9ef80713-edd5-446b-b04e-cde2a4eae4fb" alt=""><figcaption></figcaption></figure></div>

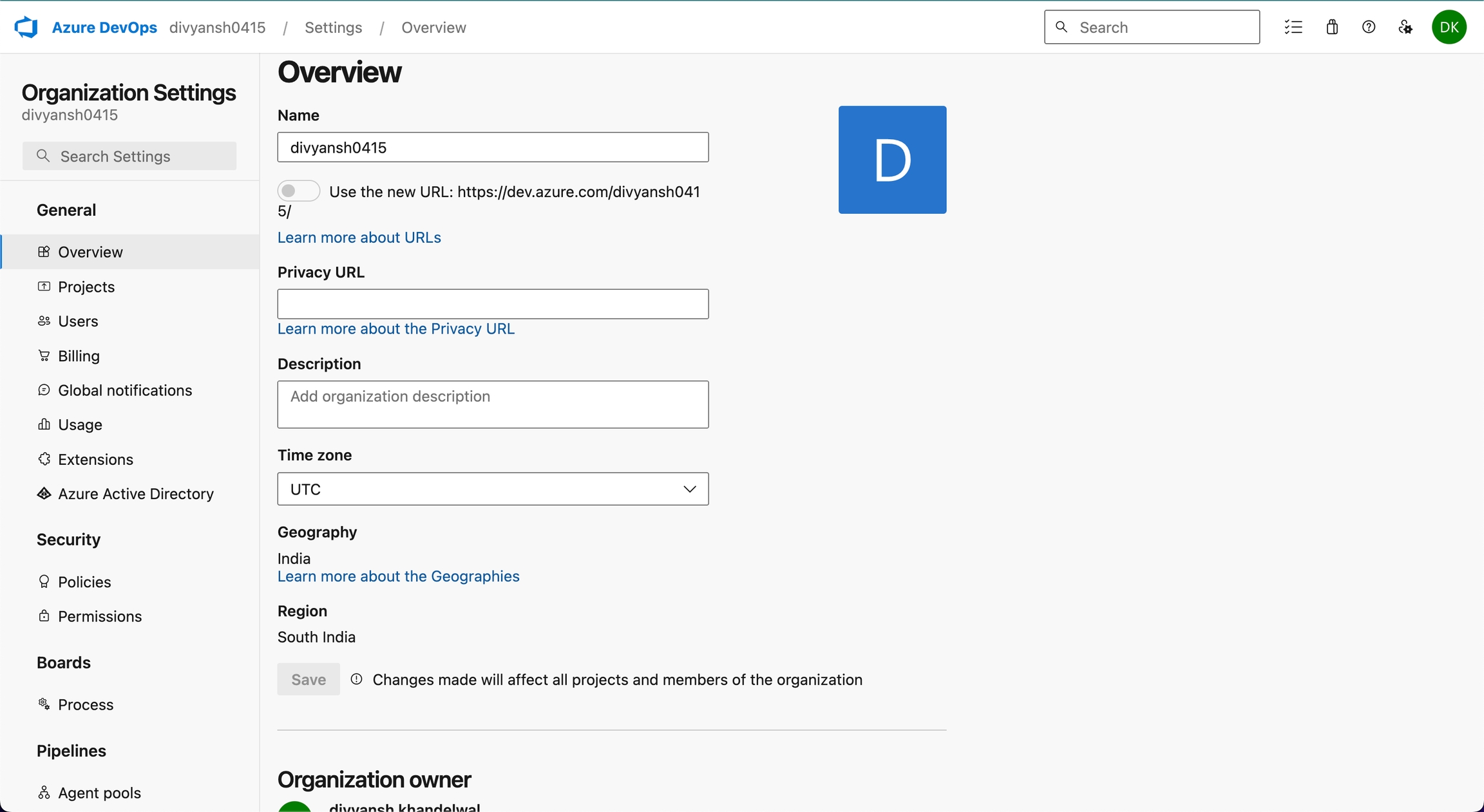

1. The organization's name can be found on the organization's settings page or from the breadcrumbs in the top bar (divyansh0415 in the screenshot below) \\

   <figure><img src="https://4171758421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FS4rgvJ71tpXan8RhYTT4%2Fuploads%2Fgit-blob-cfe7112adb76fc0510caf5d8527423766a0932a1%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
2. Paste the API token and Organization name from Azure in the integration details and press the integrate button.\
   \\
